How to Install a Door Lock

Introduction

Installing a door lock is a straightforward process that involves a few key steps. Here's a general guide to help you install a standard door lock:

Tools and Materials You'll Need

• Door lockset (including knob/lever, latch, strike plate, and screws)
• Screwdriver
• Tape measure
• Pencil
• Drill and appropriate bits
• Chisel
• Hammer

Step 1: Prepare the Door

• Start by removing the existing lock if there is one.
• Ensure the door is properly aligned and fits well in the frame.

Step 2: Measure and Mark

• Use a tape measure to find the correct placement for the lockset. Generally, the doorknob or lever is installed about 36 inches from the floor.
• Mark the center points for the latch and the knob/lever on both sides of the door.

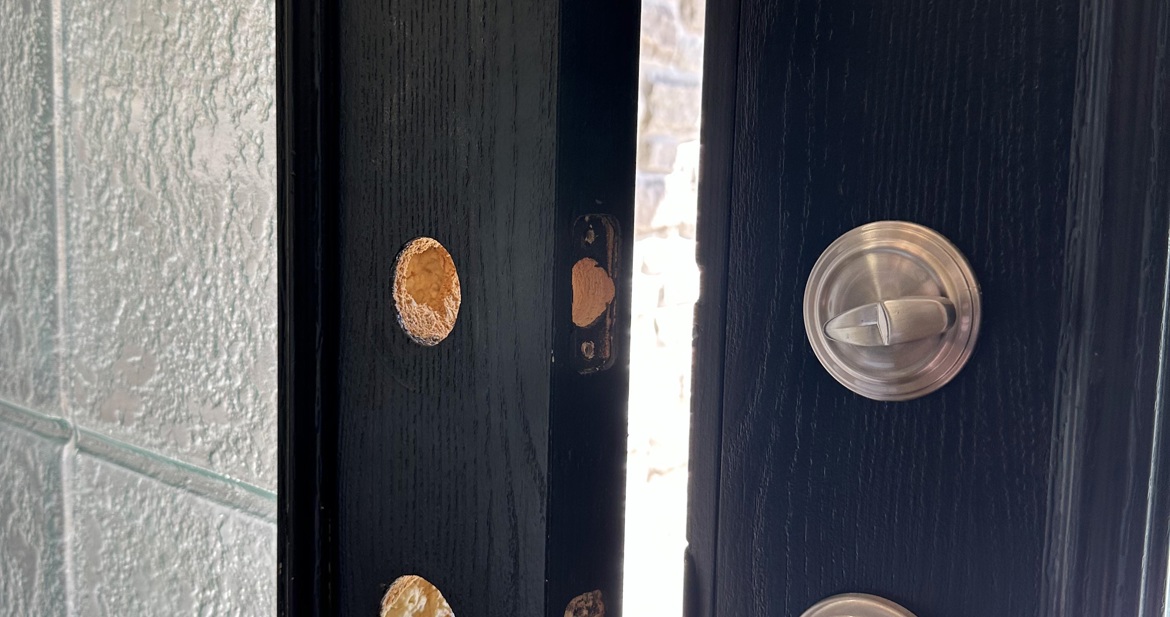

Step 3: Install the Latch

• Hold the latch in position with the bevel facing the direction the door closes.
• Trace the outline of the latch on the door.
• Use a chisel to create a recess for the latch faceplate. This will allow the latch to sit flush with the door's edge.
• Install the latch by inserting it into the hole and securing it with screws.

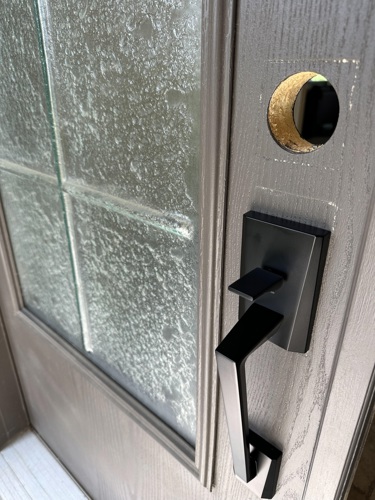

Step 4: Install the Knob/Lever

• Insert the knob or lever through the hole on one side of the door.
• Align the other side of the lockset and secure it in place with screws provided in the kit.

Step 5: Test the Lockset

• Close the door and test the lock to ensure that the latch retracts and the knob/lever turns smoothly.

Step 6: Install the Strike Plate

• Close the door and mark the location of the latch on the door frame.
• Attach the strike plate over the marked area on the frame using screws provided.
• Test the door to make sure the latch smoothly engages with the strike plate.

Step 7: Adjustments

• If necessary, adjust the strike plate or the latch to ensure proper alignment and smooth operation.

Step 8: Final Checks

• Double-check the lockset's functionality, making sure it locks and unlocks without any issues.

Remember that instructions can slightly vary based on the specific lockset you're installing. Always refer to the manufacturer's instructions that come with your lockset for the most accurate guidance. If you're unsure about any step, consider seeking assistance from a professional locksmith or a knowledgeable friend.
